StarTech.com Ethernet Switch - 5 Ports - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 126 W Power Consumption - 120 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mounta...

click to zoom in

About this item

  • Effectively reduces downtime with improved network performance
  • 4-pin Power DIN Connector Female plug/connector type for a secure, hassle-free operation
  • Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
  • Quickly and easily set up a wired network with 5 networking ports
  • PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Price: Available Upon Quote

    50+ In Stock.

    StarTech.com Ethernet Switch - 5 Ports - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 126 W Power Consumption - 120 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable - 2 Year Limited Warranty

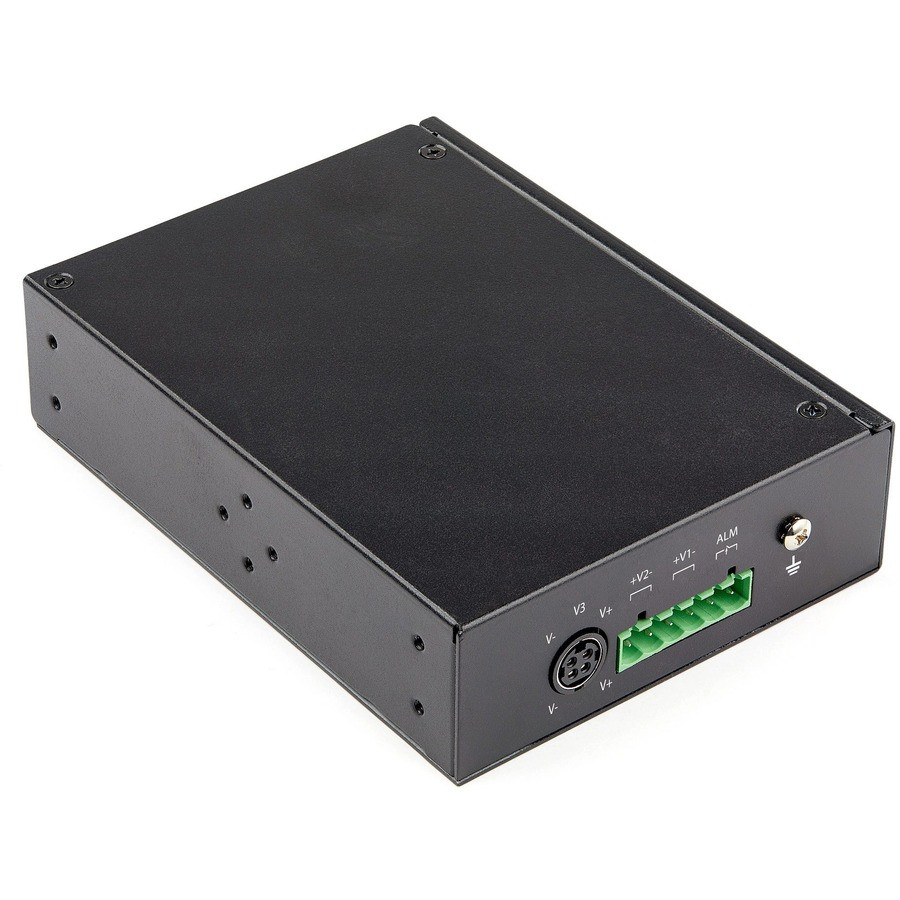

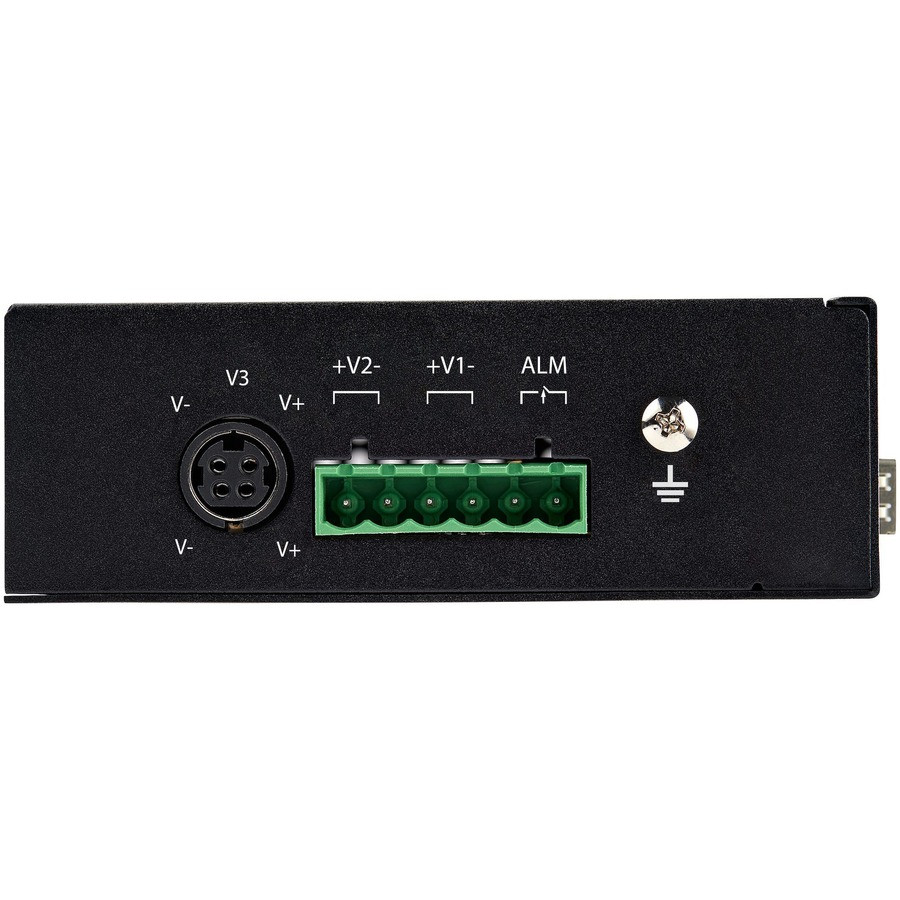

    Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable. Power Over Ethernet & 48V Voltage With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-Fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
    Product Specifications:
    Environmentally Friendly: Yes
    Network (RJ-45): Yes
    Number of SFP Slots: 2
    Modular: Yes
    Uplink Port: Yes
    Shared SFP Slot: Yes
    Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE+
    Port/Expansion Slot Details: 1 x Gigabit Ethernet TP/SFP Combo
    Port/Expansion Slot Details: 1 x Gigabit Ethernet Expansion Slot
    PoE Budget: 120 W
    Networking Standards: IEEE 802.3
    Networking Standards: IEEE 802.3u
    Networking Standards: IEEE 802.3ab
    Networking Standards: IEEE 802.3z
    Networking Standards: IEEE 802.3x
    Networking Standards: IEEE 802.3af
    Networking Standards: IEEE 802.3at
    Product Material: Steel
    Height: 1.4",35.559999999999995
    Width: 4.1",104.13999999999999
    Length: 5.6",142.23999999999998
    Manufacturer: StarTech.com
    Product Name: Ethernet Switch
    Network Technology: 1000Base-T
    Network Technology: 1000Base-X
    Manufacturer Part Number: IES1G52UPDIN
    Manufacturer Website Address: http://www.startech.com
    Marketing Information:

    Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices

    Packaged Quantity: 1 Each
    Package Contents:
    • Ethernet Switch
    • Mounting Hardware Kit
    • Quick-Start Guide
    • Terminal Block
    Limited Warranty: 2 Year
    Weight (Approximate): 1.09 lb
